eBOX-3000 | Fanless Industrial Box PC with Triple Display & PCIe Expansion
Intel Core-powered fanless embedded PC with triple display, 6 COM ports, dual LAN, and PCIe/PCI slots for automation and control applications
1274092292424z-z860967468786.png)
409793302993z-z1415021113004.png)
[[POS4]]
z-z1490940585603.png)

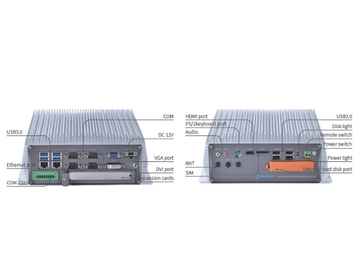

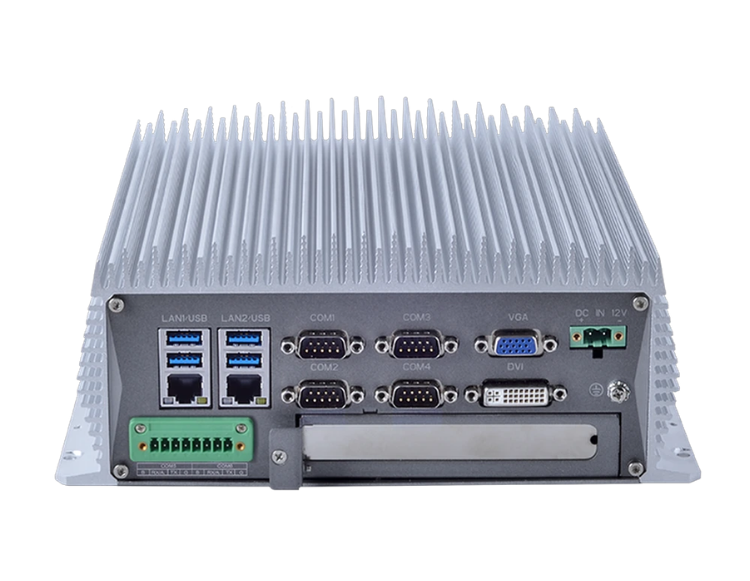

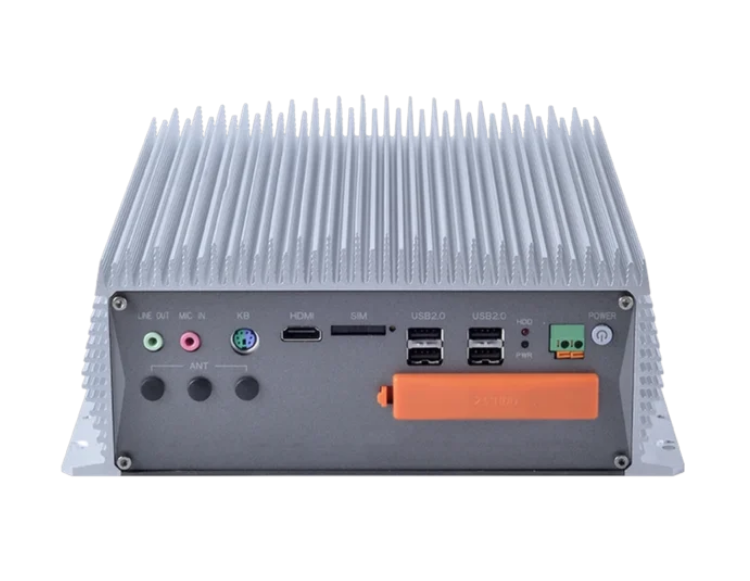

- Fanless Embedded Box PC with aluminum alloy chassis
- Supports Intel® Core™ i7/i5/i3, Pentium, Celeron (6th/7th Gen, LGA1151)
- Triple independent display output: VGA, DVI, HDMI (up to 1920×1200)
- 6 x COM ports (RS232), COM5–COM6 optional RS485
- 2 x Intel GbE LAN ports for high-reliability network support
- 8 x USB ports: 4 x USB 3.0 + 4 x USB 2.0
- 2 x Mini PCIe slots with SIM slot for wireless expansion
- PCIe/PCI slot expansion: 1 x PCIe x16 or 1 x PCI (model dependent)
- Storage support: 1 x mSATA SSD + 1 x 2.5″ SATA HDD
- Wide range DC input (12–24V) with power protection
- Wall-mountable chassis, compact and rugged design
- Operating temperature: -20°C to 60°C with SSD

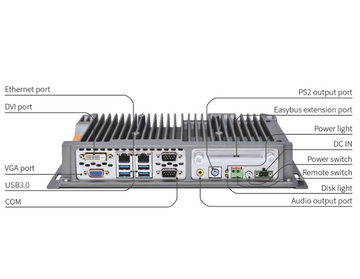

eBOX-3310
High-performance industrial computer based on the 6th/7th generation Intel core i3/i5/I7 and Celeron processor, include 2 models.
