Viscon ผู้ให้บริการ ผลิตและจัดจำหน่ายอุปรกณ์อัตโนมัติ คอมพิวเตอร์อุตสาหกรรมและซอฟต์แวร์ Machine vision

SC1000 series include multiple vision detection algorithms, which can easily achieve various error prevention detection. Compared to industrial sensors, debugging is simpler, and the guided operation process does not require programming operations; The visual detection interface can be set, edited, and monitored on the touch screen display.

Smart camera Hikrobot กล้อง AI อุตสาหกรรม ใช้งานง่าย ราคาถูก เหมาะกับงานที่ไม่มีความซับซ้อน สามารถเชื่อมต่อ PLC หรือ Robot ได้โดยตรงผ่าน protocol RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

MV-SC1003M-03S-WBN-NR	640 × 480	15.0 fps	3.1 mm	Mono	CE, KC	Available
MV-SC1003M-03S-WBN-SR	640 × 480	15.0 fps	3.1 mm	Mono	CE, KC	Available
MV-SC1008M-05S-WBN-NR	1024 × 768	15.0 fps	4.9 mm	Mono	CE, KC	Available
MV-SC1008M-05S-WBN-SR	1024 × 768	15.0 fps	4.9 mm	Mono	CE, KC	Available
MV-SC1003C-03S-WBN-NR	640 × 480	15.0 fps	3.1 mm	Color	CE, KC	Available
MV-SC1003C-03S-WBN-SR	640 × 480	15.0 fps	3.1 mm	Color	CE, KC	Available

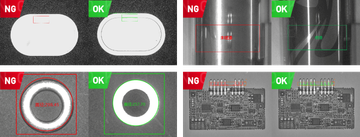

Comprehensive Error-proofing Detection Algorithm

PRODUCT LIST

MV-SC2004EM-06S-WBN-Mini	704 × 540	60.0 fps	6.72 mm	Mono	CE, KC	Available
MV-SC2016EM-06S-WBN-Mini	1408 × 1024	60.0 fps	6.72 mm	Mono	CE, KC	Available
MV-SC2004EM-08S-WBN	704 × 540	60.0 fps	8 mm	Mono	CE, KC	Available
MV-SC2004EM-12S-WBN	704 × 540	60.0 fps	12.4 mm	Mono	CE, KC	Available
MV-SC2004EM-15S-WBN	704 × 540	60.0 fps	14.8 mm	Mono	CE, KC	Available
MV-SC2004EC-08S-WBN	704 × 540	60.0 fps	8 mm	Color	CE, KC	Available
MV-SC2004EC-12S-WBN	704 × 540	60.0 fps	12.4 mm	Color	CE, KC	Available
MV-SC2004EC-15S-WBN	704 × 540	60.0 fps	14.8 mm	Color	CE, KC	Available
MV-SC2016EM-08S-WBN	1408 × 1024	60.0 fps	8 mm	Mono	CE, KC	Available
MV-SC2016EM-12S-WBN	1408 × 1024	60.0 fps	12.4 mm	Mono	CE, KC	Available
MV-SC2016EM-15S-WBN	1408 × 1024	60.0 fps	14.8 mm	Mono	CE, KC	Available
MV-SC2016EC-08S-WBN	1408 × 1024	60.0 fps	8 mm	Color	CE, KC	Available
MV-SC2016EC-12S-WBN	1408 × 1024	60.0 fps	12.4 mm	Color	CE, KC	Available
MV-SC2016EC-15S-WBN	1408 × 1024	60.0 fps	14.8 mm	Color	CE, KC	Available
MV-SC2023XC-05M-WBN	1920 × 1280	75.0 fps	5 mm	Color	CE, KC	Available
MV-SC2023XC-12M-WBN	1920 × 1280	75.0 fps	12 mm	Color	CE, KC	Available
MV-SC2023XC-16M-WBN	1920 × 1280	75.0 fps	16 mm	Color	CE, KC	Available
MV-SC2023XM-05M-WBN	1920 × 1280	75.0 fps	5 mm	Mono	CE, KC	Available
MV-SC2023XM-12M-WBN	1920 × 1280	75.0 fps	12 mm	Mono	CE, KC	Available
MV-SC2023XM-16M-WBN	1920 × 1280	75.0 fps	16 mm	Mono	CE, KC	Available
MV-SC2013XC-05M-WBN	1280 × 1024	55.0 fps	5 mm	Color	CE, KC	Available
MV-SC2013XC-12M-WBN	1280 × 1024	55.0 fps	12 mm	Color	CE, KC	Available
MV-SC2013XC-16M-WBN	1280 × 1024	55.0 fps	16 mm	Color	CE, KC	Available
MV-SC2013XM-12M-WBN	1280 × 1024	55.0 fps	12 mm	Mono	CE, KC	Available
MV-SC2013XM-05M-WBN	1280 × 1024	55.0 fps	5 mm	Mono	CE, KC	Available
MV-SC2013XM-16M-WBN	1280 × 1024	55.0 fps	16 mm	Mono	CE, KC	Available

Efficient operation, Accurate positioning

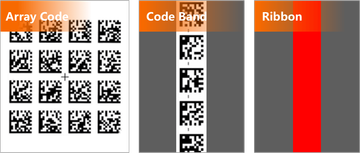

SC2000A series navigation sensor is equipped with low distortion lens to meet the reading and positioning needs of a large field of view; Built in multifunctional algorithm, it support information scanning and processing of code bands, array codes and color bands of four standard color. With a processing speed of 100fps and professional algorithms, it is easy to achieve physical deviation of 0.1mm and an angle deviation of 0.1 °, making positioning information more accurate and more timely.

PRODUCT LIST

MV-SC2005AM-02WBN	100.0 fps	800 × 600	Mono	Available
MV-SC2005AC-02WBN	96.0 fps	800 × 600	Color	Available
MV-SC2005AC-03WBN	96.0 fps	800 × 600	Color	Available

Inspection solutions such as presence/absence, U/D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools canprovide the optimal solution for parts of different shapes on the production line, making visual application easier.

PRODUCT LIST

MV-SC3013XM-08M-WBN	1216 × 1024	60.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3013XM-12M-WBN	1216 × 1024	60.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3013XM-16M-WBN	1216 × 1024	60.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3013XC-08M-WBN	1216 × 1024	60.0 fps	8 mm	Color	CE, KC	Available
MV-SC3013XC-12M-WBN	1216 × 1024	60.0 fps	12 mm	Color	CE, KC	Available
MV-SC3013XC-16M-WBN	1216 × 1024	60.0 fps	16 mm	Color	CE, KC	Available
MV-SC3030XM-08M-WBN	2048 × 1536	40.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3030XM-12M-WBN	2048 × 1536	40.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3030XM-16M-WBN	2048 × 1536	40.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3030XC-08M-WBN	2048 × 1536	40.0 fps	8 mm	Color	CE, KC	Available
MV-SC3030XC-12M-WBN	2048 × 1536	40.0 fps	12 mm	Color	CE, KC	Available
MV-SC3030XC-16M-WBN	2048 × 1536	40.0 fps	16 mm	Color	CE, KC	Available
MV-SC3050XM-08M-WBN	2432 × 2048	40.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3050XM-12M-WBN	2432 × 2048	40.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3050XM-16M-WBN	2432 × 2048	40.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3050XC-08M-WBN	2432 × 2048	40.0 fps	8 mm	Color	CE, KC	Available
MV-SC3050XC-12M-WBN	2432 × 2048	40.0 fps	12 mm	Color	CE, KC	Available
MV-SC3050XC-16M-WBN	2432 × 2048	40.0 fps	16 mm	Color	CE, KC	Available
MV-SC3050XM-08M-WBN-S	2432 × 2048	40.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3050XM-12M-WBN-S	2432 × 2048	40.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3050XM-16M-WBN-S	2432 × 2048	40.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3050XC-08M-WBN-S	2432 × 2048	40.0 fps	8 mm	Color	CE, KC	Available
MV-SC3050XC-12M-WBN-S	2432 × 2048	40.0 fps	12 mm	Color	CE, KC	Available
MV-SC3050XC-16M-WBN-S	2432 × 2048	40.0 fps	16 mm	Color	CE, KC	Available
MV-SC3016M-06M-WBN	1408 × 1024	60.0 fps	6 mm	Mono	CE, KC	Available
MV-SC3016M-12M-WBN	1408 × 1024	60.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3016M-15M-WBN	1408 × 1024	60.0 fps	14.8 mm	Mono	CE, KC	Available
MV-SC3016C-06M-WBN	1408 × 1024	60.0 fps	6 mm	Color	CE, KC	Available
MV-SC3016C-12M-WBN	1408 × 1024	60.0 fps	12 mm	Color	CE, KC	Available
MV-SC3016C-15M-WBN	1408 × 1024	60.0 fps	14.8 mm	Color	CE, KC	Available
MV-SC3050M-16M-WBN V4	2432 × 2048	50.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3050M-12M-WBN V4	2432 × 2048	50.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3050M-08M-WBN V4	2432 × 2048	50.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3060XC-12M-WBN	3200 × 1920	20.0 fps	12 mm	Color	CE, KC	Available
MV-SC3060XC-16M-WBN	3200 × 1920	20.0 fps	16 mm	Color	CE, KC	Available
MV-SC3060XC-08M-WBN	3200 × 1920	20.0 fps	8 mm	Color	CE, KC	Available
MV-SC3060XM-12M-WBN	3200 × 1920	20.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3060XM-08M-WBN	3200 × 1920	20.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3060XM-16M-WBN	3200 × 1920	20.0 fps	16 mm	Mono	CE, KC	Available

Modular accessories, stronger usability

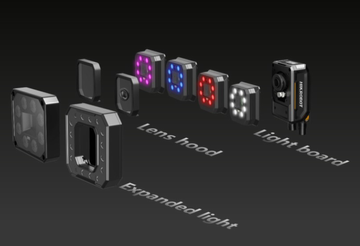

SC5000X provides a variety of accessories and modular lighting components： multi- multi-color light sources, extended high brightness light sources, etc., allowing users to flexibly respond to the constantly changing needs on the spot. Combined with HDR algorithm, it provides a more stable lighting solution for visual inspection and has stronger scene adaptability.

PRODUCT LIST

MV-SC5020XM-06M-WBN	1600 × 1216	100.0 fps	6 mm	Mono	CE, KC	Available
MV-SC5020XM-12M-WBN	1600 × 1216	100.0 fps	12 mm	Mono	CE, KC	Available
MV-SC5020XM-16M-WBN	1600 × 1216	100.0 fps	16 mm	Mono	CE, KC	Available
MV-SC5020XC-06M-WBN	1600 × 1216	100.0 fps	6 mm	Color	CE, KC	Available
MV-SC5020XC-12M-WBN	1600 × 1216	100.0 fps	12 mm	Color	CE, KC	Available
MV-SC5020XC-16M-WBN	1600 × 1216	100.0 fps	16 mm	Color	CE, KC	Available
MV-SC5050XM-08M-WBN	2432 × 2048	60.0 fps	8 mm	Mono	CE, KC	Available
MV-SC5050XM-12M-WBN	2432 × 2048	60.0 fps	12 mm	Mono	CE, KC	Available
MV-SC5050XM-16M-WBN	2432 × 2048	60.0 fps	16 mm	Mono	CE, KC	Available
MV-SC5050XC-08M-WBN	2432 × 2048	60.0 fps	8 mm	Color	CE, KC	Available
MV-SC5050XC-12M-WBN	2432 × 2048	60.0 fps	12 mm	Color	CE, KC	Available
MV-SC5050XC-16M-WBN	2432 × 2048	60.0 fps	16 mm	Color	CE, KC	Available
MV-SC5020XM-00C-NNN	1600 × 1216	100.0 fps		Mono	CE, KC	Available
MV-SC5020XC-00C-NNN	1600 × 1216	100.0 fps		Color	CE, KC	Available
MV-SC5050XM-00C-NNN	2432 × 2048	60.0 fps		Mono	CE, KC	Available
MV-SC5050XC-00C-NNN	2432 × 2048	60.0 fps		Color	CE, KC	Available
MV-SC5120XM-00C-NNN	4096 × 2944	30.0 fps		Mono	CE, KC	Available
MV-SC5120XC-00C-NNN	4096 × 2944	30.0 fps		Color	CE, KC	Available
MV-SC5060XC-12M-WBN	3200 × 1920	15.0 fps	12 mm	Color	CE, KC	Available
MV-SC5060XC-08M-WBN	3200 × 1920	15.0 fps	8 mm	Color	CE, KC	Available
MV-SC5060XC-16M-WBN	3200 × 1920	15.0 fps	16 mm	Color	CE, KC	Available
MV-SC5060XC-00C-NNN	3200 × 1920	15.0 fps		Color	CE, KC	Available
MV-SC5060XM-08M-WBN	3200 × 1920	15.0 fps	8 mm	Mono	CE, KC	Available
MV-SC5060XM-16M-WBN	3200 × 1920	15.0 fps	16 mm	Mono	CE, KC	Available
MV-SC5060XM-12M-WBN	3200 × 1920	15.0 fps	12 mm	Mono	CE, KC	Available
MV-SC5060XM-00C-NNN	3200 × 1920	15.0 fps		Mono	CE, KC	Available
MV-SC5100XC-08M-WBN	4096 × 2816	10.0 fps	8 mm	Color	CE, KC	Available
MV-SC5100XC-12M-WBN	4096 × 2816	10.0 fps	12 mm	Color	CE, KC	Available
MV-SC5100XC-16M-WBN	4096 × 2816	10.0 fps	16 mm	Color	CE, KC	Available
MV-SC5100XC-00C-NNN	4096 × 2816	10.0 fps		Color	CE, KC	Available
MV-SC5100XM-16M-WBN	4096 × 2816	10.0 fps	16 mm	Mono	CE, KC	Available
MV-SC5100XM-08M-WBN	4096 × 2816	10.0 fps	8 mm	Mono	CE, KC	Available
MV-SC5100XM-12M-WBN	4096 × 2816	10.0 fps	12 mm	Mono	CE, KC	Available
MV-SC5100XM-00C-NNN	4096 × 2816	10.0 fps		Mono	CE, KC	Available

Rich algorithms, Easy to use

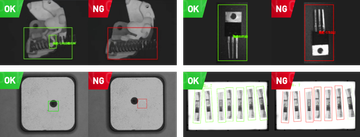

The SC6000 AI smart camera has more than 140 visual tools, over 30 communication protocols, and adopts graphical interaction and process based operations, improving the application flexibility of smart cameras; SC6000 with high computing power and strong flexibility can handle everything from simple presence and absence judgments to complex defect detection, making it more adaptable to scenarios.

MV-SC6016M-06M-XBN	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016M-12M-XBN	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016M-16M-XBN	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016M-00C-NNN/V2	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016C-06M-XBN	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016C-12M-XBN	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016C-16M-XBN	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6016C-00C-NNN/V2	1408 × 1024	120.0 fps	CE, KC	Available
MV-SC6050M-08M-XBN	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050M-12M-XBN	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050M-16M-XBN	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050M-00C-NNN/V2	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050C-08M-XBN	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050C-12M-XBN	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050C-16M-XBN	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6050C-00C-NNN/V2	2432 × 2048	80.0 fps	CE, KC	Available
MV-SC6120M-00C-NNN	4096 × 2944	45.0 fps	CE, KC	Available
MV-SC6120C-00C-NNN	4096 × 2944	45.0 fps	CE, KC	Available
MV-SC6250M-00C-NNN	5120 × 5120	20.0 fps	CE, KC	Available
MV-SC6250C-00C-NNN	4608 × 5120	16.0 fps	CE, KC	Available
MV-SC6500P-AI-WID-RBN	1408 × 576	120.0 fps	CE, KC	Available
MV-SC6500P-AI-WID-IBN	1408 × 576	120.0 fps	CE, KC	Available
